SAF48減速電機詳細信息

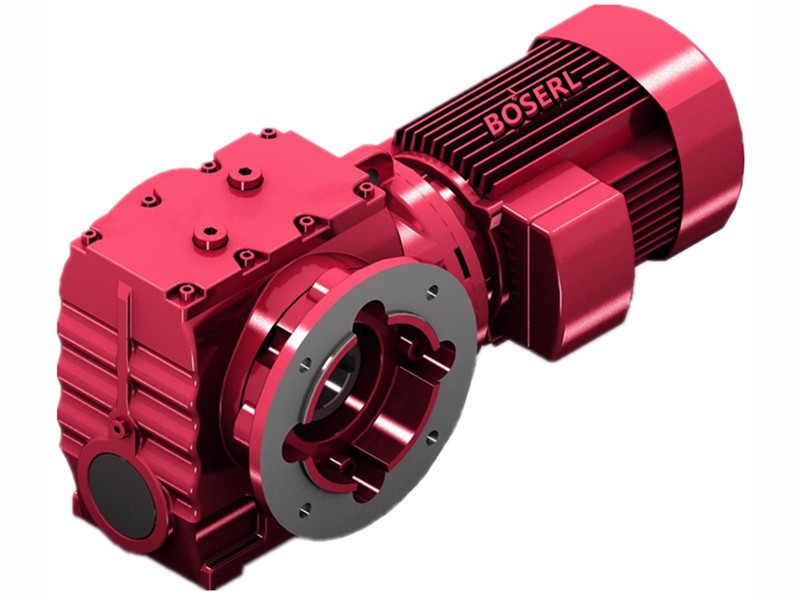

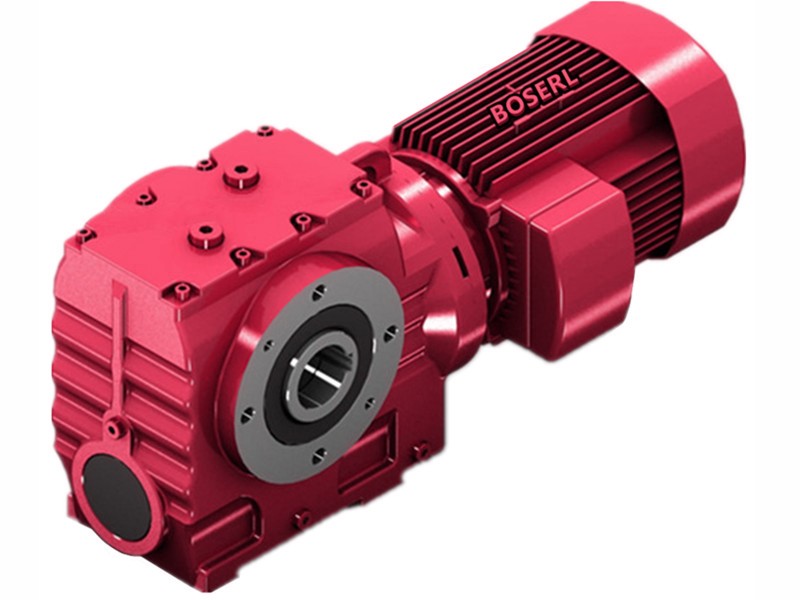

SAF48減速電機
訂購熱線：13360667204
SAF48減速電機功率計算公式：齒輪減速馬達
變位機參數：輪子直徑190，拉動1600斤，運行速度45米
45米÷（0.19滾筒直徑X3.14）=75.43轉每分鐘
1600斤換算成扭矩=1568N.m
1568N.m×0.095滾筒半徑=148.96N.m
電機轉數1400÷輸出轉數75.43=18.56比
148.96N.m輸出扭矩÷18.56比=8.03N.m電機扭矩
8.03N.m電機扭矩換算成功率1.27KW以上
對應的SAF48減速機型號參數：
型號：SAF48-BVPEJ1.5KW
減速比：14.24
輸出轉數：100轉每分鐘
輸出扭矩：127N.m
安全系數：0.85
SAF48減速電機基座尺寸：輸出軸Φ20+鍵2.5（可定做），高134*寬135*長174（帶輸出軸）伺服電機渦輪渦桿減速機
SAF48渦輪減速機型號：
SAF48減速電機型號參數：自鎖減速機
SAF48減速機配0.12KW電機參數
| 型號 | 速比 | 功率 | 重量 | 沖擊力 |
| S47Y0.12KW | 201.00 | 0.12KW | 15.5kg | 5680N |
| S47Y0.12KW | 184.80 | 0.12KW | 15.5kg | 5700N |
| S47Y0.12KW | 158.12 | 0.12KW | 15.5kg | 5740N |
| S47Y0.12KW | 137.05 | 0.12KW | 15.5kg | 5780N |
| S47Y0.12KW | 128.10 | 0.12KW | 15.5kg | 5790N |
| S47Y0.12KW | 110.73 | 0.12KW | 15.5kg | 5810N |
SAF48減速機配0.18KW電機參數
| 型號 | 速比 | 功率 | 重量 | 沖擊力 |
| S47Y0.18KW | 201.00 | 0.18KW | 16kg | 5440N |
| S47Y0.18KW | 184.80 | 0.18KW | 16kg | 5490N |
| S47Y0.18KW | 158.12 | 0.18KW | 16kg | 5570N |
| S47Y0.18KW | 137.05 | 0.18KW | 16kg | 5630N |
| S47Y0.18KW | 128.10 | 0.18KW | 16kg | 5660N |
| S47Y0.18KW | 110.73 | 0.18KW | 16kg | 5700N |
| S47Y0.18KW | 94.08 | 0.18KW | 16kg | 5750N |
| S47Y0.18KW | 84.00 | 0.18KW | 16kg | 5770N |
| S47Y0.18KW | 71.75 | 0.18KW | 16kg | 5800N |
| S47Y0.18KW | 69.39 | 0.18KW | 16kg | 5750N |
SAF48減速機配0.25KW電機參數
| 型號 | 速比 | 功率 | 重量 | 沖擊力 |
| S47Y0.25KW | 201.00 | 0.25KW | 20kg | 5120N |
| S47Y0.25KW | 184.80 | 0.25KW | 20kg | 5210N |
| S47Y0.25KW | 158.12 | 0.25KW | 20kg | 5340N |
| S47Y0.25KW | 137.05 | 0.25KW | 20kg | 5440N |
| S47Y0.25KW | 128.10 | 0.25KW | 20kg | 5480N |
| S47Y0.25KW | 110.73 | 0.25KW | 20kg | 5560N |
| S47Y0.25KW | 94.08 | 0.25KW | 20kg | 5630N |
| S47Y0.25KW | 84.00 | 0.25KW | 20kg | 5670N |
| S47Y0.25KW | 71.75 | 0.25KW | 20kg | 5720N |
| S47Y0.25KW | 69.39 | 0.25KW | 20kg | 5640N |
| S47Y0.25KW | 67.20 | 0.25KW | 20kg | 5740N |
| S47Y0.25KW | 63.80 | 0.25KW | 20kg | 5670N |
| S47Y0.25KW | 54.59 | 0.25KW | 20kg | 5720N |
| S47Y0.25KW | 47.32 | 0.25KW | 20kg | 5760N |
SAF48減速機配0.37KW電機參數
| 型號 | 速比 | 功率 | 重量 | 沖擊力 |
| S47Y0.37KW | 137.05 | 0.37KW | 20.5kg | 5110N |
| S47Y0.37KW | 128.10 | 0.37KW | 20.5kg | 5180N |
| S47Y0.37KW | 110.73 | 0.37KW | 20.5kg | 5320N |
| S47Y0.37KW | 94.08 | 0.37KW | 20.5kg | 5430N |
| S47Y0.37KW | 84.00 | 0.37KW | 20.5kg | 5500N |
| S47Y0.37KW | 71.75 | 0.37KW | 20.5kg | 5580N |
| S47Y0.37KW | 69.39 | 0.37KW | 20.5kg | 5460N |
| S47Y0.37KW | 67.20 | 0.37KW | 20.5kg | 5610N |
| S47Y0.37KW | 63.80 | 0.37KW | 20.5kg | 5510N |
| S47Y0.37KW | 54.59 | 0.37KW | 20.5kg | 5590N |
| S47Y0.37KW | 47.32 | 0.37KW | 20.5kg | 5410N |
| S47Y0.37KW | 44.22 | 0.37KW | 20.5kg | 5330N |
| S47Y0.37KW | 38.23 | 0.37KW | 20.5kg | 5140N |
| S47Y0.37KW | 32.48 | 0.37KW | 20.5kg | 4930N |
| S47Y0.37KW | 29.00 | 0.37KW | 20.5kg | 4790N |
| S47Y0.37KW | 24.77 | 0.37KW | 20.5kg | 4590N |
| S47Y0.37KW | 23.20 | 0.37KW | 20.5kg | 4510N |
| S47Y0.37KW | 20.33 | 0.37KW | 20.5kg | 4180N |
| S47Y0.37KW | 17.62 | 0.37KW | 20.5kg | 4030N |
| S47Y0.37KW | 16.47 | 0.37KW | 20.5kg | 3960N |
SAF48減速機配0.55KW電機參數
| 型號 | 速比 | 功率 | 重量 | 沖擊力 |
| S47Y0.55KW | 84.00 | 0.55KW | 25kg | 5160N |
| S47Y0.55KW | 71.75 | 0.55KW | 25kg | 5310N |
| S47Y0.55KW | 67.20 | 0.55KW | 25kg | 5360N |
| S47Y0.55KW | 54.59 | 0.55KW | 25kg | 5120N |
| S47Y0.55KW | 47.32 | 0.55KW | 25kg | 5000N |
| S47Y0.55KW | 44.22 | 0.55KW | 25kg | 4940N |
| S47Y0.55KW | 38.23 | 0.55KW | 25kg | 4800N |
| S47Y0.55KW | 32.48 | 0.55KW | 25kg | 4640N |
| S47Y0.55KW | 29.00 | 0.55KW | 25kg | 4530N |
| S47Y0.55KW | 24.77 | 0.55KW | 25kg | 4360N |
| S47Y0.55KW | 23.20 | 0.55KW | 25kg | 4300N |
| S47Y0.55KW | 20.33 | 0.55KW | 25kg | 3910N |
| S47Y0.55KW | 17.62 | 0.55KW | 25kg | 3790N |
| S47Y0.55KW | 16.47 | 0.55KW | 25kg | 3740N |
| S47Y0.55KW | 14.24 | 0.55KW | 25kg | 3620N |
| S47Y0.55KW | 12.10 | 0.55KW | 25kg | 3480N |
| S47Y0.55KW | 10.80 | 0.55KW | 25kg | 3390N |
| S47Y0.55KW | 9.23 | 0.55KW | 25kg | 3260N |
SAF48減速機配0.75KW電機參數
| 型號 | 速比 | 功率 | 重量 | 沖擊力 |
| S47Y0.75KW | 47.32 | 0.75KW | 26kg | 4510N |
| S47Y0.75KW | 44.22 | 0.75KW | 26kg | 4480N |
| S47Y0.75KW | 38.23 | 0.75KW | 26kg | 4400N |
| S47Y0.75KW | 32.48 | 0.75KW | 26kg | 4290N |
| S47Y0.75KW | 29.00 | 0.75KW | 26kg | 4200N |
| S47Y0.75KW | 24.77 | 0.75KW | 26kg | 4080N |
| S47Y0.75KW | 23.20 | 0.75KW | 26kg | 4030N |
| S47Y0.75KW | 20.33 | 0.75KW | 26kg | 3590N |
| S47Y0.75KW | 17.62 | 0.75KW | 26kg | 3510N |
| S47Y0.75KW | 16.47 | 0.75KW | 26kg | 3470N |
| S47Y0.75KW | 14.24 | 0.75KW | 26kg | 3380N |
| S47Y0.75KW | 12.10 | 0.75KW | 26kg | 3280N |
| S47Y0.75KW | 10.80 | 0.75KW | 26kg | 3200N |
| S47Y0.75KW | 9.23 | 0.75KW | 26kg | 3090N |
| S47Y0.75KW | 8.64 | 0.75KW | 26kg | 3040N |
| S47Y0.75KW | 7.28 | 0.75KW | 26kg | 2920N |
SAF48減速機配1.1KW電機參數
| 型號 | 速比 | 功率 | 重量 | 沖擊力 |
| S47Y1.1KW | 29.00 | 1.1KW | 30kg | 3720N |
| S47Y1.1KW | 24.77 | 1.1KW | 30kg | 3660N |
| S47Y1.1KW | 23.20 | 1.1KW | 30kg | 3640N |
| S47Y1.1KW | 19.54 | 1.1KW | 30kg | 3560N |
| S47Y1.1KW | 17.62 | 1.1KW | 30kg | 3070N |
| S47Y1.1KW | 16.47 | 1.1KW | 30kg | 3060N |
| S47Y1.1KW | 14.24 | 1.1KW | 30kg | 3030N |
| S47Y1.1KW | 12.10 | 1.1KW | 30kg | 2980N |
| S47Y1.1KW | 10.80 | 1.1KW | 30kg | 2930N |
| S47Y1.1KW | 9.23 | 1.1KW | 30kg | 2860N |
| S47Y1.1KW | 8.64 | 1.1KW | 30kg | 2830N |
| S47Y1.1KW | 7.28 | 1.1KW | 30kg | 2740N |
SAF48減速機配1.5KW電機參數
| 型號 | 速比 | 功率 | 重量 | 沖擊力 |
| S47Y1.5KW | 14.24 | 1.5KW | 33kg | 2620N |
| S47Y1.5KW | 12.10 | 1.5KW | 33kg | 2620N |
| S47Y1.5KW | 10.80 | 1.5KW | 33kg | 2620N |
| S47Y1.5KW | 9.24 | 1.5KW | 33kg | 2590N |
| S47Y1.5KW | 8.64 | 1.5KW | 33kg | 2580N |
| S47Y1.5KW | 7.28 | 1.5KW | 33kg | 2530N |
SAF48減速電機生產工廠展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約
推薦類似型號：S48減速機
關鍵詞:GSAF系列減速機配電機一體式_伺服電機渦輪渦桿減速機_立式蝸桿減速機_立式蝸輪蝸桿減速機_SAF系列減速機_SAF系列減速器_伺服電機渦輪渦桿減速器_伺服渦輪渦桿減速機_立式蝸輪減速機
SAF系列蝸輪蝸桿減速機型號：SAF38減速機,SAF48減速機,SAF58減速機,SAF68減速機,SAF78減速機,SAF88減速機,SAF98齒輪減速馬達
SAF系列自鎖減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-22KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: SAF48減速電機 SAF47渦輪減速機 SAF47減速機功率 SAF47減速機基座尺寸 SAF47減速機模型 SAF47減速機型號參數
