K58R38減速機詳細信息
K58R38減速機
K58R38減速機電機功率：K58R38Y0.12KW減速機,K58R38Y0.18KW減速機,K58R38Y0.25KW減速機,K58R38Y0.37KW減速機,K58R38Y0.55KW減速機（可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機）。
K58R38減速機配0.12KW電機參數
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| K58R38-Y0.12KW | 906 | 0.12KW | 1.50r/min | 605N.m | 41kg | 7580N | 1.00 |
| K58R38-Y0.12KW | 806 | 0.12KW | 1.70r/min | 545N.m | 41kg | 8060N | 1.10 |
| K58R38-Y0.12KW | 699 | 0.12KW | 2.00r/min | 455N.m | 41kg | 8620N | 1.30 |
| K58R38-Y0.12KW | 615 | 0.12KW | 2.20r/min | 400N.m | 41kg | 8870N | 1.50 |
| K58R38-Y0.12KW | 544 | 0.12KW | 2.50r/min | 350N.m | 41kg | 9080N | 1.70 |
| K58R38-Y0.12KW | 473 | 0.12KW | 2.90r/min | 320N.m | 41kg | 9190N | 1.85 |
| K58R38-Y0.12KW | 421 | 0.12KW | 3.30r/min | 270N.m | 41kg | 9390N | 2.20 |
| K58R38-Y0.12KW | 362 | 0.12KW | 3.80r/min | 245N.m | 41kg | 9470N | 2.40 |
| K58R38-Y0.12KW | 319 | 0.12KW | 4.30r/min | 215N.m | 41kg | 9570N | 2.80 |
| K58R38-Y0.12KW | 280 | 0.12KW | 4.90r/min | 181N.m | 41kg | 9690N | 3.30 |
| K58R38-Y0.12KW | 246 | 0.12KW | 5.60r/min | 160N.m | 41kg | 9760N | 3.80 |
| K58R38-Y0.12KW | 215 | 0.12KW | 6.40r/min | 141N.m | 41kg | 9810N | 4.30 |
| K58R38-Y0.12KW | 192 | 0.12KW | 7.20r/min | 126N.m | 41kg | 9850N | 4.80 |
K58R38減速機配0.18KW電機參數
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| K58R38-Y0.18KW | 544 | 0.18KW | 2.40r/min | 590N.m | 41.5kg | 7690N | 1.00 |
| K58R38-Y0.18KW | 473 | 0.18KW | 2.80r/min | 535N.m | 41.5kg | 8150N | 1.10 |
| K58R38-Y0.18KW | 421 | 0.18KW | 3.10r/min | 455N.m | 41.5kg | 8620N | 1.30 |
| K58R38-Y0.18KW | 362 | 0.18KW | 3.60r/min | 405N.m | 41.5kg | 8840N | 1.45 |
| K58R38-Y0.18KW | 319 | 0.18KW | 4.10r/min | 360N.m | 41.5kg | 9050N | 1.65 |
| K58R38-Y0.18KW | 280 | 0.18KW | 4.70r/min | 300N.m | 41.5kg | 9270N | 1.95 |
| K58R38-Y0.18KW | 246 | 0.18KW | 5.40r/min | 265N.m | 41.5kg | 9400N | 2.20 |
| K58R38-Y0.18KW | 215 | 0.18KW | 6.10r/min | 235N.m | 41.5kg | 9510N | 2.50 |
| K58R38-Y0.18KW | 192 | 0.18KW | 6.90r/min | 210N.m | 41.5kg | 9600N | 2.80 |
| K58R38-Y0.18KW | 166 | 0.18KW | 7.90r/min | 182N.m | 41.5kg | 9690N | 3.30 |
K58R38減速機配0.25KW電機參數
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| K58R38-Y0.25KW | 421 | 0.25KW | 3.10r/min | 665N.m | 45.5kg | 4200N | 0.90 |
| K58R38-Y0.25KW | 362 | 0.25KW | 3.60r/min | 590N.m | 45.5kg | 7690N | 1.00 |
| K58R38-Y0.25KW | 319 | 0.25KW | 4.10r/min | 520N.m | 45.5kg | 8260N | 1.15 |
| K58R38-Y0.25KW | 280 | 0.25KW | 4.60r/min | 440N.m | 45.5kg | 8680N | 1.35 |
| K58R38-Y0.25KW | 246 | 0.25KW | 5.30r/min | 390N.m | 45.5kg | 8920N | 1.55 |
| K58R38-Y0.25KW | 215 | 0.25KW | 6.00r/min | 345N.m | 45.5kg | 9110N | 1.75 |
| K58R38-Y0.25KW | 192 | 0.25KW | 6.80r/min | 305N.m | 45.5kg | 9260N | 1.95 |
| K58R38-Y0.25KW | 166 | 0.25KW | 7.80r/min | 265N.m | 45.5kg | 9410N | 2.30 |
| K58R38-Y0.25KW | 145 | 0.25KW | 9.00r/min | 230N.m | 45.5kg | 9530N | 2.60 |
| K58R38-Y0.25KW | 129 | 0.25KW | 10.0r/min | 210N.m | 45.5kg | 9600N | 2.80 |
| K58R38-Y0.25KW | 111 | 0.25KW | 12.0r/min | 178N.m | 45.5kg | 9700N | 3.40 |
| K58R38-Y0.25KW | 97 | 0.25KW | 13.0r/min | 156N.m | 45.5kg | 9770N | 3.80 |
K58R38減速機配0.37KW電機參數
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| K58R38-Y0.37KW | 280 | 0.37KW | 4.90r/min | 630N.m | 46kg | 7350N | 0.95 |
| K58R38-Y0.37KW | 246 | 0.37KW | 5.60r/min | 555N.m | 46kg | 7980N | 1.10 |
| K58R38-Y0.37KW | 215 | 0.37KW | 6.40r/min | 490N.m | 46kg | 8460N | 1.20 |
| K58R38-Y0.37KW | 192 | 0.37KW | 7.20r/min | 435N.m | 46kg | 8720N | 1.40 |
| K58R38-Y0.37KW | 166 | 0.37KW | 8.30r/min | 375N.m | 46kg | 8980N | 1.60 |
| K58R38-Y0.37KW | 129 | 0.37KW | 11.0r/min | 295N.m | 46kg | 9290N | 2.00 |
| K58R38-Y0.37KW | 111 | 0.37KW | 12.0r/min | 250N.m | 46kg | 9460N | 2.40 |
| K58R38-Y0.37KW | 97 | 0.37KW | 14.0r/min | 220N.m | 46kg | 9560N | 2.70 |
K58R38減速機配0.55KW電機參數
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| K58R38-Y0.55KW | 192 | 0.55KW | 7.20r/min | 655N.m | 50.5kg | 5460N | 0.90 |
| K58R38-Y0.55KW | 166 | 0.55KW | 8.30r/min | 570N.m | 50.5kg | 7870N | 1.05 |
| K58R38-Y0.55KW | 145 | 0.55KW | 9.60r/min | 500N.m | 50.5kg | 8420N | 1.20 |
| K58R38-Y0.55KW | 129 | 0.55KW | 11.0r/min | 445N.m | 50.5kg | 8660N | 1.35 |
| K58R38-Y0.55KW | 111 | 0.55KW | 12.0r/min | 380N.m | 50.5kg | 8960N | 1.55 |
| K58R38-Y0.55KW | 97 | 0.55KW | 14.0r/min | 335N.m | 50.5kg | 9140N | 1.80 |
K58R38減速器減速比：97比齒輪減速馬達,111比減速器,129比減速器,145比減速器,166比減速器,192比減速器,215比減速器,246比減速器,280比減速器,319比減速器,362比減速器,421比減速器,473比減速器,544比減速器,615比減速器,699比減速器,806比減速器,906比減速器。

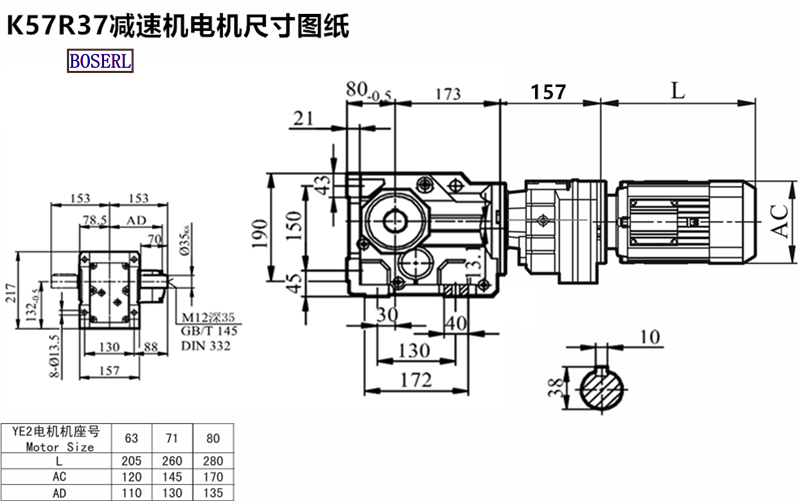

K58R38減速機電機安裝尺寸：輸出軸+鍵Φ38（可定做），高217*寬231.5（帶輸出軸）*長410
K58R38減速電機輸出轉數：1.5轉減速電機,1.7轉減速電機,2轉減速電機,2.2轉減速電機,2.4轉減速電機,2.5轉減速電機,2.8轉減速電機,2.9轉減速電機,3.1轉減速電機,3.3轉減速電機,3.6轉減速電機,3.8轉減速電機,4.1轉減速電機,4.3轉減速電機,4.6轉減速電機,4.9轉減速電機,5.3轉減速電機,5.4轉減速電機,5.6轉減速電機,6轉減速電機,6.1轉減速電機,6.4轉減速電機,6.8轉減速電機,6.9轉減速電機,7.2轉減速電機,7.8轉減速電機,7.9轉減速電機,8.3轉減速電機,9轉減速電機,9.6轉減速電機,10轉減速電機,11轉減速電機,12轉減速電機,13轉直角減速機,14轉減速電機。
K58R38減速箱電機輸出扭矩：126N.m減速箱,141N.m減速箱,156N.m減速箱,160N.m減速箱,178N.m減速箱,181N.m減速箱,182N.m減速箱,210N.m減速箱,215N.m減速箱,220N.m減速箱,230N.m減速箱,235N.m減速箱,245N.m減速箱,250N.m減速箱,265N.m減速箱,270N.m減速箱,295N.m減速箱,300N.m減速箱,305N.m減速箱,320N.m減速箱,335N.m減速箱,345N.m減速箱,350N.m減速箱,360N.m減速箱,375N.m減速箱,380N.m減速箱,390N.m減速箱,400N.m減速箱,405N.m減速箱,435N.m減速箱,440N.m減速箱,445N.m減速箱,455N.m減速箱,490N.m減速箱,500N.m減速箱,520N.m減速箱,535N.m減速箱,545N.m減速箱,555N.m減速箱,570N.m減速箱,590N.m減速箱,605N.m減速箱,630N.m減速箱,655N.m減速箱,665N.m減速箱。
K58R38減速機電機各種輸出實物圖：
K58R38減速馬達型號：
KHZ57R37DM63L4,KHZ57R37DM63M4,KHZ57R37DM63MS4,KHZ57R37DM63S4,KHZ57R37DM71D4,KHZ57R37DM71M4,KHZ57R37DM71MS4,KHZ57R37DM71S4,KHZ57R37DM80K4,KHZ57R37DM80M4,KHZ57R37DM80MK4,KHZ57R37DM80N4,KHZ57R37DM80S4,KHZ57R37DM90L4,KHZ57R37DM90M4,KHZ57R37DM90S4,KHZ57R37DR63L4,KHZ57R37DR63M4,KHZ57R37DR63MS4,KHZ57R37DR63S4,KHZ57R37DR71D4,KHZ57R37DR71M4,KHZ57R37DR71MS4,KHZ57R37DR71S4,KHZ57R37DR80K4,KHZ57R37DR80M4,KHZ57R37DR80MK4,KHZ57R37DR80N4,KHZ57R37DR80S4,KHZ57R37DR90L4,KHZ57R37DR90M4,KHZ57R37DR90S4,KHZ57R37DRE63L4,KHZ57R37DRE63M4,KHZ57R37DRE63MS4,KHZ57R37DRE63S4,KHZ57R37DRE71D4,KHZ57R37DRE71M4,KHZ57R37DRE71MS4,KHZ57R37DRE71S4,KHZ57R37DRE80K4,KHZ57R37DRE80M4,KHZ57R37DRE80MK4,KHZ57R37DRE80N4,KHZ57R37DRE80S4,KHZ57R37DRE90L4,KHZ57R37DRE90M4,KHZ57R37DRE90S4,KHZ57R37DRN63L4,KHZ57R37DRN63M4,KHZ57R37DRN63MS4,KHZ57R37DRN63S4,KHZ57R37DRN71D4,KHZ57R37DRN71M4,KHZ57R37DRN71MS4,KHZ57R37DRN71S4,KHZ57R37DRN80K4,KHZ57R37DRN80M4,KHZ57R37DRN80MK4,KHZ57R37DRN80N4,KHZ57R37DRN80S4,KHZ57R37DRN90L4,KHZ57R37DRN90M4,KHZ57R37DRN90S4,KHZ57R37DRS63L4,KHZ57R37DRS63M4,KHZ57R37DRS63MS4,KHZ57R37DRS63S4,KHZ57R37DRS71D4,KHZ57R37DRS71M4,KHZ57R37DRS71MS4,KHZ57R37DRS71S4,KHZ57R37DRS80K4,KHZ57R37DRS80M4,KHZ57R37DRS80MK4,KHZ57R37DRS80N4,KHZ57R37DRS80S4,KHZ57R37DRS90L4,KHZ57R37DRS90M4,KHZ57R37DRS90S4,KHZ57R37DT63L4,KHZ57R37DT63M4,KHZ57R37DT63MS4,KHZ57R37DT63S4,KHZ57R37DT71D4,KHZ57R37DT71M4,KHZ57R37DT71MS4,KHZ57R37DT71S4,KHZ57R37DT80K4,KHZ57R37DT80M4,KHZ57R37DT80MK4,KHZ57R37DT80N4,KHZ57R37DT80S4,KHZ57R37DT90L4,KHZ57R37DT90M4,KHZ57R37DT90S4,KHZ57R37DV63L4,KHZ57R37DV63M4,KHZ57R37DV63MS4,KHZ57R37DV63S4,KHZ57R37DV71D4,KHZ57R37DV71M4,KHZ57R37DV71MS4,KHZ57R37DV71S4,KHZ57R37DV80K4,KHZ57R37DV80M4,KHZ57R37DV80MK4,KHZ57R37DV80N4,KHZ57R37DV80S4,KHZ57R37DV90L4,KHZ57R37DV90M4,KHZ57R37DV90S4,KHZ57R37DVE63L4,KHZ57R37DVE63M4,KHZ57R37DVE63MS4,KHZ57R37DVE63S4,KHZ57R37DVE71D4,KHZ57R37DVE71M4,KHZ57R37DVE71MS4,KHZ57R37DVE71S4,KHZ57R37DVE80K4,KHZ57R37DVE80M4,KHZ57R37DVE80MK4,KHZ57R37DVE80N4,KHZ57R37DVE80S4,KHZ57R37DVE90L4,KHZ57R37DVE90M4,KHZ57R37DVE90S4,KHZ57RF37-Y0.12KW,KHZ57RF37-Y0.12KW,KHZ57RF37-Y0.12KW,KHZ57RF37-Y0.12KW,KHZ57RF37-Y0.18KW,KHZ57RF37-Y0.18KW,KHZ57RF37-Y0.18KW,KHZ57RF37-Y0.18KW,KHZ57RF37-Y0.25KW,KHZ57RF37-Y0.25KW,KHZ57RF37-Y0.25KW,KHZ57RF37-Y0.25KW,KHZ57RF37-Y0.37KW,KHZ57RF37-Y0.37KW,KHZ57RF37-Y0.37KW,KHZ57RF37-Y0.37KW,KHZ57RF37-Y0.55KW,KHZ57RF37-Y0.55KW,KHZ57RF37-Y0.55KW,KHZ57RF37-Y0.55KW,KHZ57RF37-Y0.75KW,KHZ57RF37-Y0.75KW,KHZ57RF37-Y0.75KW,KHZ57RF37-Y0.75KW,KHZ57RF37-Y1.1KW,KHZ57RF37-Y1.1KW,KHZ57RF37-Y1.1KW,KHZ57RF37-Y1.1KW,KHZ57RF37-Y1.5KW,KHZ57RF37-Y1.5KW,KHZ57RF37-Y1.5KW,KHZ57RF37-Y1.5KW,KHZ57RF37-Y63M4,KHZ57RF37-Y71M4,KHZ57RF37-Y80M4,KHZ57RF37-Y90M4,KHZ57RF37-YEJ63M4,KHZ57RF37-YEJ71M4,KHZ57RF37-YEJ80M4,KHZ57RF37-YEJ90S4,KHZ57RF37-YVP63M4,KHZ57RF37-YVP71M4,KHZ57RF37-YVP80M4,KHZ57RF37-YVP90S4,KHZ57RF37-YVPEJ63M4,KHZ57RF37-YVPEJ71M4,KHZ57RF37-YVPEJ80M4,KHZ57RF37-YVPEJ90S4,KVZ57R37DM63L4,KVZ57R37DM63M4,KVZ57R37DM63MS4,KVZ57R37DM63S4,KVZ57R37DM71D4,KVZ57R37DM71M4,KVZ57R37DM71MS4,KVZ57R37DM71S4,KVZ57R37DM80K4,KVZ57R37DM80M4,KVZ57R37DM80MK4,KVZ57R37DM80N4,KVZ57R37DM80S4,KVZ57R37DM90L4,KVZ57R37DM90M4,KVZ57R37DM90S4,KVZ57R37DR63L4,KVZ57R37DR63M4,KVZ57R37DR63MS4,KVZ57R37DR63S4,KVZ57R37DR71D4,KVZ57R37DR71M4,KVZ57R37DR71MS4,KVZ57R37DR71S4,KVZ57R37DR80K4,KVZ57R37DR80M4,KVZ57R37DR80MK4,KVZ57R37DR80N4,KVZ57R37DR80S4,KVZ57R37DR90L4,KVZ57R37DR90M4,KVZ57R37DR90S4,KVZ57R37DRE63L4,KVZ57R37DRE63M4,KVZ57R37DRE63MS4,KVZ57R37DRE63S4,KVZ57R37DRE71D4,KVZ57R37DRE71M4,KVZ57R37DRE71MS4,KVZ57R37DRE71S4,KVZ57R37DRE80K4,KVZ57R37DRE80M4,KVZ57R37DRE80MK4,KVZ57R37DRE80N4,KVZ57R37DRE80S4,KVZ57R37DRE90L4,KVZ57R37DRE90M4,KVZ57R37DRE90S4,KVZ57R37DRN63L4,KVZ57R37DRN63M4,KVZ57R37DRN63MS4,KVZ57R37DRN63S4,KVZ57R37DRN71D4,KVZ57R37DRN71M4,KVZ57R37DRN71MS4,KVZ57R37DRN71S4,KVZ57R37DRN80K4,KVZ57R37DRN80M4,KVZ57R37DRN80MK4,KVZ57R37DRN80N4,KVZ57R37DRN80S4,KVZ57R37DRN90L4,KVZ57R37DRN90M4,KVZ57R37DRN90S4,KVZ57R37DRS63L4,KVZ57R37DRS63M4,KVZ57R37DRS63MS4,KVZ57R37DRS63S4,KVZ57R37DRS71D4,KVZ57R37DRS71M4,KVZ57R37DRS71MS4,KVZ57R37DRS71S4,KVZ57R37DRS80K4,KVZ57R37DRS80M4,KVZ57R37DRS80MK4,KVZ57R37DRS80N4,KVZ57R37DRS80S4,KVZ57R37DRS90L4,KVZ57R37DRS90M4,KVZ57R37DRS90S4,KVZ57R37DT63L4,KVZ57R37DT63M4,KVZ57R37DT63MS4,KVZ57R37DT63S4,KVZ57R37DT71D4,KVZ57R37DT71M4,KVZ57R37DT71MS4,KVZ57R37DT71S4,KVZ57R37DT80K4,KVZ57R37DT80M4,KVZ57R37DT80MK4,KVZ57R37DT80N4,KVZ57R37DT80S4,KVZ57R37DT90L4,KVZ57R37DT90M4,KVZ57R37DT90S4,KVZ57R37DV63L4,KVZ57R37DV63M4,KVZ57R37DV63MS4,KVZ57R37DV63S4,KVZ57R37DV71D4,KVZ57R37DV71M4,KVZ57R37DV71MS4,KVZ57R37DV71S4,KVZ57R37DV80K4,KVZ57R37DV80M4,KVZ57R37DV80MK4,KVZ57R37DV80N4,KVZ57R37DV80S4,KVZ57R37DV90L4,KVZ57R37DV90M4,KVZ57R37DV90S4,KVZ57R37DVE63L4,KVZ57R37DVE63M4,KVZ57R37DVE63MS4,KVZ57R37DVE63S4,KVZ57R37DVE71D4,KVZ57R37DVE71M4,KVZ57R37DVE71MS4,KVZ57R37DVE71S4,KVZ57R37DVE80K4,KVZ57R37DVE80M4,KVZ57R37DVE80MK4,KVZ57R37DVE80N4,KVZ57R37DVE80S4,KVZ57R37DVE90L4,KVZ57R37DVE90M4,KVZ57R37DVE90S4,KVZ57RF37-Y0.12KW,KVZ57RF37-Y0.12KW,KVZ57RF37-Y0.12KW,KVZ57RF37-Y0.12KW,KVZ57RF37-Y0.18KW,KVZ57RF37-Y0.18KW,KVZ57RF37-Y0.18KW,KVZ57RF37-Y0.18KW,KVZ57RF37-Y0.25KW,KVZ57RF37-Y0.25KW,KVZ57RF37-Y0.25KW,KVZ57RF37-Y0.25KW,KVZ57RF37-Y0.37KW,KVZ57RF37-Y0.37KW,KVZ57RF37-Y0.37KW,KVZ57RF37-Y0.37KW,KVZ57RF37-Y0.55KW,KVZ57RF37-Y0.55KW,KVZ57RF37-Y0.55KW,KVZ57RF37-Y0.55KW,KVZ57RF37-Y0.75KW,KVZ57RF37-Y0.75KW,KVZ57RF37-Y0.75KW,KVZ57RF37-Y0.75KW,KVZ57RF37-Y1.1KW,KVZ57RF37-Y1.1KW,KVZ57RF37-Y1.1KW,KVZ57RF37-Y1.1KW,KVZ57RF37-Y1.5KW,KVZ57RF37-Y1.5KW,KVZ57RF37-Y1.5KW,KVZ57RF37-Y1.5KW,KVZ57RF37-Y63M4,KVZ57RF37-Y71M4,KVZ57RF37-Y80M4,KVZ57RF37-Y90M4,KVZ57RF37-YEJ63M4,KVZ57RF37-YEJ71M4,KVZ57RF37-YEJ80M4,KVZ57RF37-YEJ90S4,KVZ57RF37-YVP63M4,KVZ57RF37-YVP71M4,KVZ57RF37-YVP80M4,KVZ57RF37-YVP90S4,KVZ57RF37-YVPEJ63M4,KVZ57RF37-YVPEJ71M4,KVZ57RF37-YVPEJ80M4,KVZ57RF37-YVPEJ90S4,KAZ57R37DM63L4,KAZ57R37DM63M4,KAZ57R37DM63MS4,KAZ57R37DM63S4,KAZ57R37DM71D4,KAZ57R37DM71M4,KAZ57R37DM71MS4,KAZ57R37DM71S4,KAZ57R37DM80K4,KAZ57R37DM80M4,KAZ57R37DM80MK4,KAZ57R37DM80N4,KAZ57R37DM80S4,KAZ57R37DM90L4,KAZ57R37DM90M4,KAZ57R37DM90S4,KAZ57R37DR63L4,KAZ57R37DR63M4,KAZ57R37DR63MS4,KAZ57R37DR63S4,KAZ57R37DR71D4,KAZ57R37DR71M4,KAZ57R37DR71MS4,KAZ57R37DR71S4,KAZ57R37DR80K4,KAZ57R37DR80M4,KAZ57R37DR80MK4,KAZ57R37DR80N4,KAZ57R37DR80S4,KAZ57R37DR90L4,KAZ57R37DR90M4,KAZ57R37DR90S4,KAZ57R37DRE63L4,KAZ57R37DRE63M4,KAZ57R37DRE63MS4,KAZ57R37DRE63S4,KAZ57R37DRE71D4,KAZ57R37DRE71M4,KAZ57R37DRE71MS4,KAZ57R37DRE71S4,KAZ57R37DRE80K4,KAZ57R37DRE80M4,KAZ57R37DRE80MK4,KAZ57R37DRE80N4,KAZ57R37DRE80S4,KAZ57R37DRE90L4,KAZ57R37DRE90M4,KAZ57R37DRE90S4,KAZ57R37DRN63L4,KAZ57R37DRN63M4,KAZ57R37DRN63MS4,KAZ57R37DRN63S4,KAZ57R37DRN71D4,KAZ57R37DRN71M4,KAZ57R37DRN71MS4,KAZ57R37DRN71S4,KAZ57R37DRN80K4,KAZ57R37DRN80M4,KAZ57R37DRN80MK4,KAZ57R37DRN80N4,KAZ57R37DRN80S4,KAZ57R37DRN90L4,KAZ57R37DRN90M4,KAZ57R37DRN90S4,KAZ57R37DRS63L4,KAZ57R37DRS63M4,KAZ57R37DRS63MS4,KAZ57R37DRS63S4,KAZ57R37DRS71D4,KAZ57R37DRS71M4,KAZ57R37DRS71MS4,KAZ57R37DRS71S4,KAZ57R37DRS80K4,KAZ57R37DRS80M4,KAZ57R37DRS80MK4,KAZ57R37DRS80N4,KAZ57R37DRS80S4,KAZ57R37DRS90L4,KAZ57R37DRS90M4,KAZ57R37DRS90S4,KAZ57R37DT63L4,KAZ57R37DT63M4,KAZ57R37DT63MS4,KAZ57R37DT63S4,KAZ57R37DT71D4,KAZ57R37DT71M4,KAZ57R37DT71MS4,KAZ57R37DT71S4,KAZ57R37DT80K4,KAZ57R37DT80M4,KAZ57R37DT80MK4,KAZ57R37DT80N4,KAZ57R37DT80S4,KAZ57R37DT90L4,KAZ57R37DT90M4,KAZ57R37DT90S4,KAZ57R37DV63L4,KAZ57R37DV63M4,KAZ57R37DV63MS4,KAZ57R37DV63S4,KAZ57R37DV71D4,KAZ57R37DV71M4,KAZ57R37DV71MS4,KAZ57R37DV71S4,KAZ57R37DV80K4,KAZ57R37DV80M4,KAZ57R37DV80MK4,KAZ57R37DV80N4,KAZ57R37DV80S4,KAZ57R37DV90L4,KAZ57R37DV90M4,KAZ57R37DV90S4,KAZ57R37DVE63L4,KAZ57R37DVE63M4,KAZ57R37DVE63MS4,KAZ57R37DVE63S4,KAZ57R37DVE71D4,KAZ57R37DVE71M4,KAZ57R37DVE71MS4,KAZ57R37DVE71S4,KAZ57R37DVE80K4,KAZ57R37DVE80M4,KAZ57R37DVE80MK4,KAZ57R37DVE80N4,KAZ57R37DVE80S4,KAZ57R37DVE90L4,KAZ57R37DVE90M4,KAZ57R37DVE90S4,KAZ57RF37-Y0.12KW,KAZ57RF37-Y0.12KW,KAZ57RF37-Y0.12KW,KAZ57RF37-Y0.12KW,KAZ57RF37-Y0.18KW,KAZ57RF37-Y0.18KW,KAZ57RF37-Y0.18KW,KAZ57RF37-Y0.18KW,KAZ57RF37-Y0.25KW,KAZ57RF37-Y0.25KW,KAZ57RF37-Y0.25KW,KAZ57RF37-Y0.25KW,KAZ57RF37-Y0.37KW,KAZ57RF37-Y0.37KW,KAZ57RF37-Y0.37KW,KAZ57RF37-Y0.37KW,KAZ57RF37-Y0.55KW,KAZ57RF37-Y0.55KW,KAZ57RF37-Y0.55KW,KAZ57RF37-Y0.55KW,KAZ57RF37-Y0.75KW,KAZ57RF37-Y0.75KW,KAZ57RF37-Y0.75KW,KAZ57RF37-Y0.75KW,KAZ57RF37-Y1.1KW,KAZ57RF37-Y1.1KW,KAZ57RF37-Y1.1KW,KAZ57RF37-Y1.1KW,KAZ57RF37-Y1.5KW,KAZ57RF37-Y1.5KW,KAZ57RF37-Y1.5KW,KAZ57RF37-Y1.5KW,KAZ57RF37-Y63M4,KAZ57RF37-Y71M4,KAZ57RF37-Y80M4,KAZ57RF37-Y90M4,KAZ57RF37-YEJ63M4,KAZ57RF37-YEJ71M4,KAZ57RF37-YEJ80M4,KAZ57RF37-YEJ90S4,KAZ57RF37-YVP63M4,KAZ57RF37-YVP71M4,KAZ57RF37-YVP80M4,KAZ57RF37-YVP90S4,KAZ57RF37-YVPEJ63M4,KAZ57RF37-YVPEJ71M4,KAZ57RF37-YVPEJ80M4,KAZ57RF37-YVPEJ90S4。
K58R38減速電機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://m.272323.com/product/list-kxiliejiansuji-cn.html
推薦型號：K58減速機
關鍵詞:GK型減速機配電機一體式_螺旋錐齒輪減速器_K系列減速機_雙出軸減速機_90度減速機_螺旋錐齒輪減速機_GK系列減速機_K系列減速器_雙出軸減速器_90度減速器
K系列齒輪減速馬達型號：K38減速機,K48減速機,K58減速機,K68減速機,K78減速機,K88減速機,K98減速機,K108減速機,K128減速機,K158減速機,K168減速機,K188減速機
K系列直角減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-200KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: KHZ57R37 KVZ57R37 KAZ57R37
